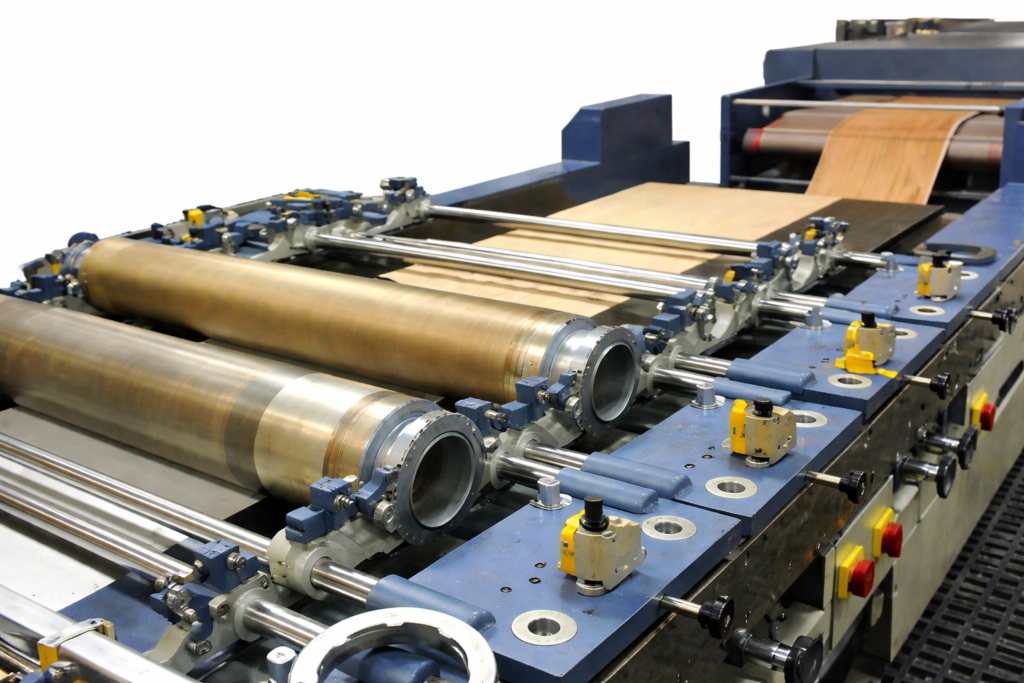

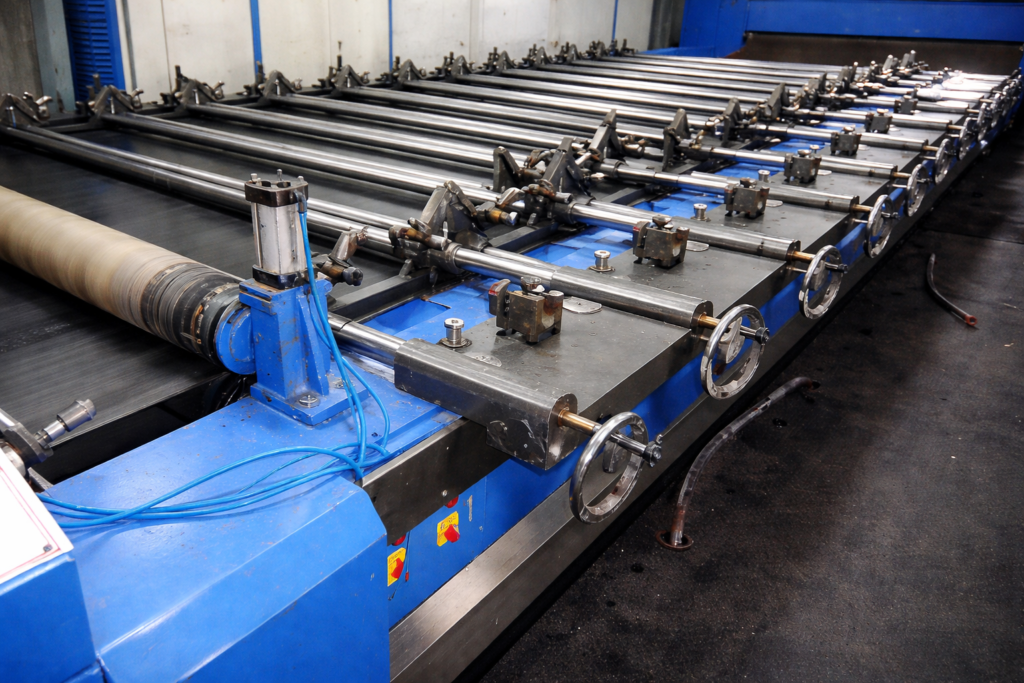

Rotary Printing LX10 Machine

The LAXMI Rotary LX10 is a robust and efficient rotary screen printing machine designed for reliable multi-colour textile printing. Built with a strong mechanical structure and precision gear-driven system, the LX10 delivers consistent print quality and smooth fabric movement, making it suitable for medium to high-volume production.

Unlike fully automatic systems, the LX10 operates on a semi-automatic/mechanical platform, offering better control, easy maintenance, and cost-effective operation for textile units.

Designed for durability and performance, this machine is widely used in textile industries where dependable output and long service life are essential.

Key Features:

- - Semi-automatic rotary screen printing system
  - Multi-colour printing capability
  - Gear-driven synchronization for accurate colour registration
  - Magnetic roller / manual squeegee system
  - Strong heavy-duty structure for stable operation
  - Easy screen handling and maintenance
  - Step-less repeat and width adjustment

Suitable for continuous roll-to-roll fabric printing

Performance Advantages:

Simple operation with low maintenance

Reliable performance for long production runs

Consistent print quality with proper operator control

Ideal for small to medium textile units

Technical Data :

Category	Parameter	Specification	Description
General	Model	LAXMI Rotary LX10	Rotary screen printing machine
	Machine Type	Semi-Automatic	Gear-driven mechanical system
	Number of Colours	As per Requirement	Multi-colour printing capability
	Printing Width	Up to 4000 mm	Suitable for wide fabric processing
	Production Speed	15–60 m/min	Medium to high-speed production
	Control System	Manual / Basic Electrical	Simple operation & control
	Drive System	Gear Driven	Reliable synchronization system
	Fabric Compatibility	Cotton, Polyester, Blends	Suitable for woven & knitted fabrics
Printing System	Squeegee Type	Magnetic / Manual	Uniform colour paste application
	Registration System	Mechanical (Gear Synchronization)	Accurate colour alignment
	Fabric Feeding	Manual / Tension-Controlled	Smooth fabric handling
	Design Change	Manual	Requires operator adjustment
	Washing System	Offline (Optional)	Easy cleaning & maintenance
Dryer System	Heating Source	Gas / Diesel / Electric (Optional)	Flexible energy options
	Chambers	2 / 3 / 4	Based on machine configuration
	Exhaust Units	1 / 2 / 3	Controlled airflow system
	Number of Passes	Single / Multiple	Depends on drying requirement
	Evaporation Capacity	300 – 800 kg/hr	Efficient drying performance
	Installed Power	20 – 40 kW	Lower power consumption vs automatic
Build & Efficiency	Machine Structure	Heavy-Duty MS Fabrication	Strong & vibration-resistant body
	Energy Efficiency	Moderate	Cost-effective operation
	Noise Level	Low to Moderate	Operator-friendly environment
	Maintenance	Easy Access Design	Simple maintenance & servicing

Rotary Printing LX10 Machine
