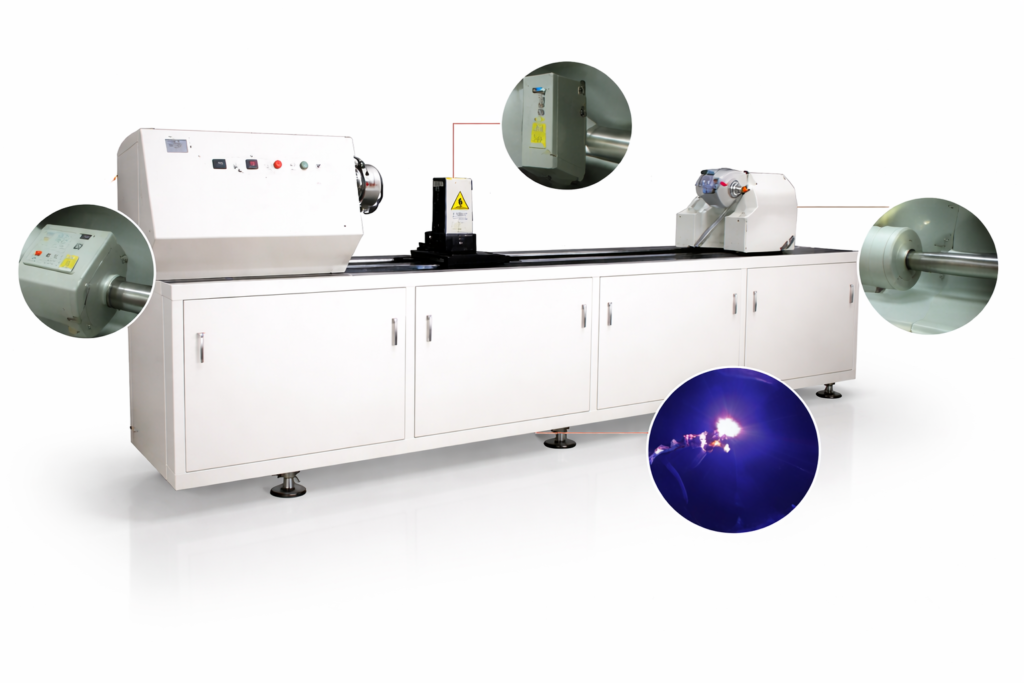

• LEX uses diode laser to expose (harden) the non-design area lacquer (photo emulsion). After developing process, the design area (non-exposed lacquer) will be washed off, to make the screen holes open for the colour paste penetration.

• Powered by diode laser generator from Japan, LEX enables you to an economical engraving solution, while keeps high engraving definition.

• LEX is open for any kind of lacquer (emulsion) to be integrated in your current engraving process.

• Key Features:

• Fully automatic operation (not semi-automatic)
• Equipped with Japanese diode module

• High resolution & reliability for finest line output

• Capable of engraving 2-pixel width (0.1058 mm) lines at 720 dpi (with proper emulsion & coating)

• Semiconductor refrigeration system ensures stable temperature and longer laser source life
• Beam (focus) adjustment is fully digitalized

• Repeat adjustment is digitalized for high accuracy

• Performance Advantages:

• • • Reduces manual errors with full automation & digital control
    • Delivers high-definition designs suitable for fine textile printing
    • Easy integration with existing screen making processes

•  Lower maintenance and longer lifespan due to advanced cooling system

• Technical Data:

Mode: LLD2200 –

Mode: LLD3500 –
